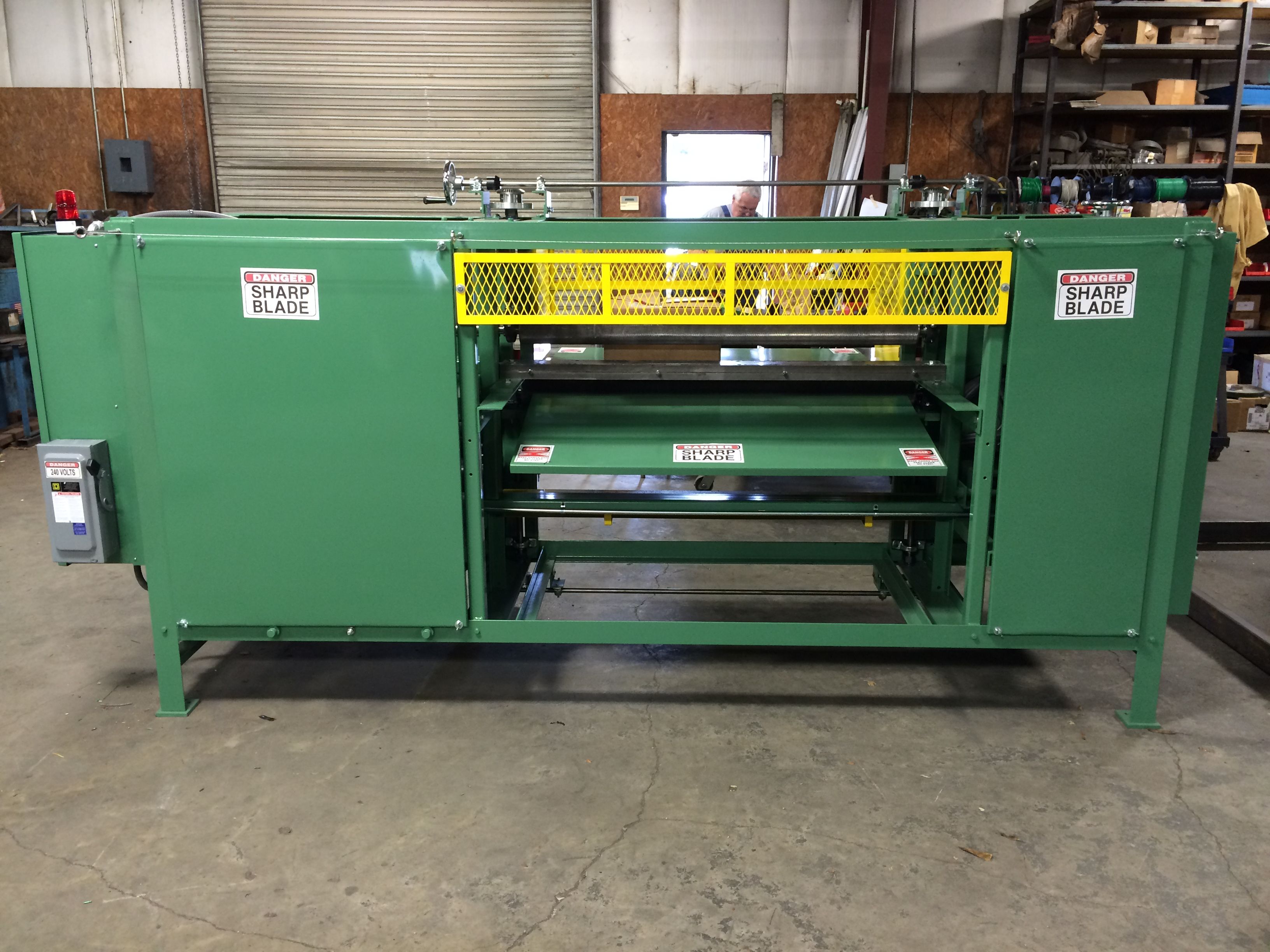

Roll Splitter/Skiver
The roll splitter is designed to process "hard-to-cut" materials; ethafoam, PVC, neoprene foam, and other semi flexible cellular products
The cutting is done by bandknife, powered by a 7.5 HP motor and no-slip timing belt drive. The knife wheels are 20" diameter, ball bearing mounted. The knife is stablized at the cutting position by rigid guide bar with hardened wearstrips and adjustable carbology backstops.
The material is fed in the machine by two 4" diameter knurled rolls, powered by 5HP motor, gear reducer and universal joint drive, assuring even, synchronized speed for material to advance into the knife. Variable speed roll drive is standard.
Product Photo Gallery

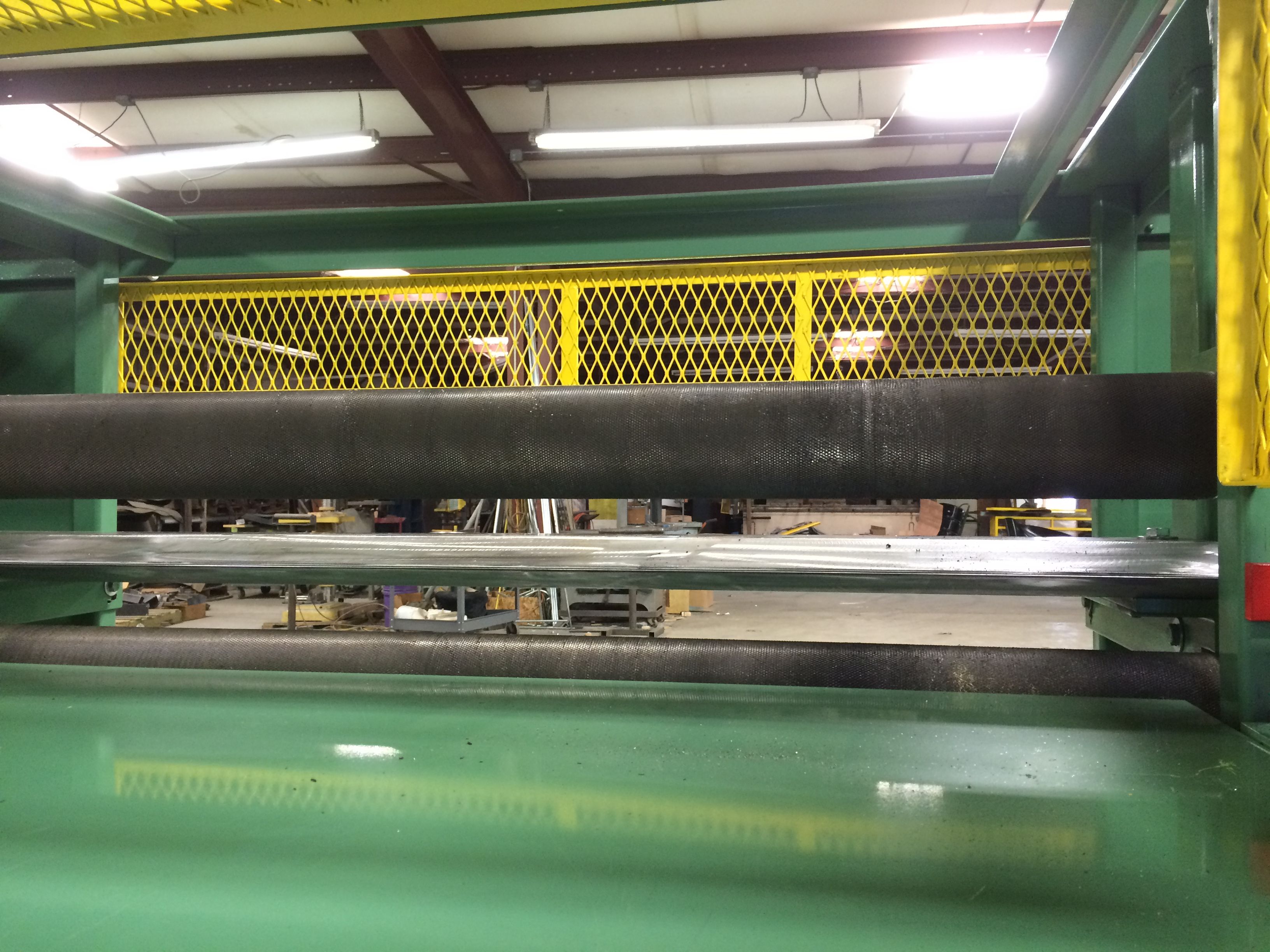

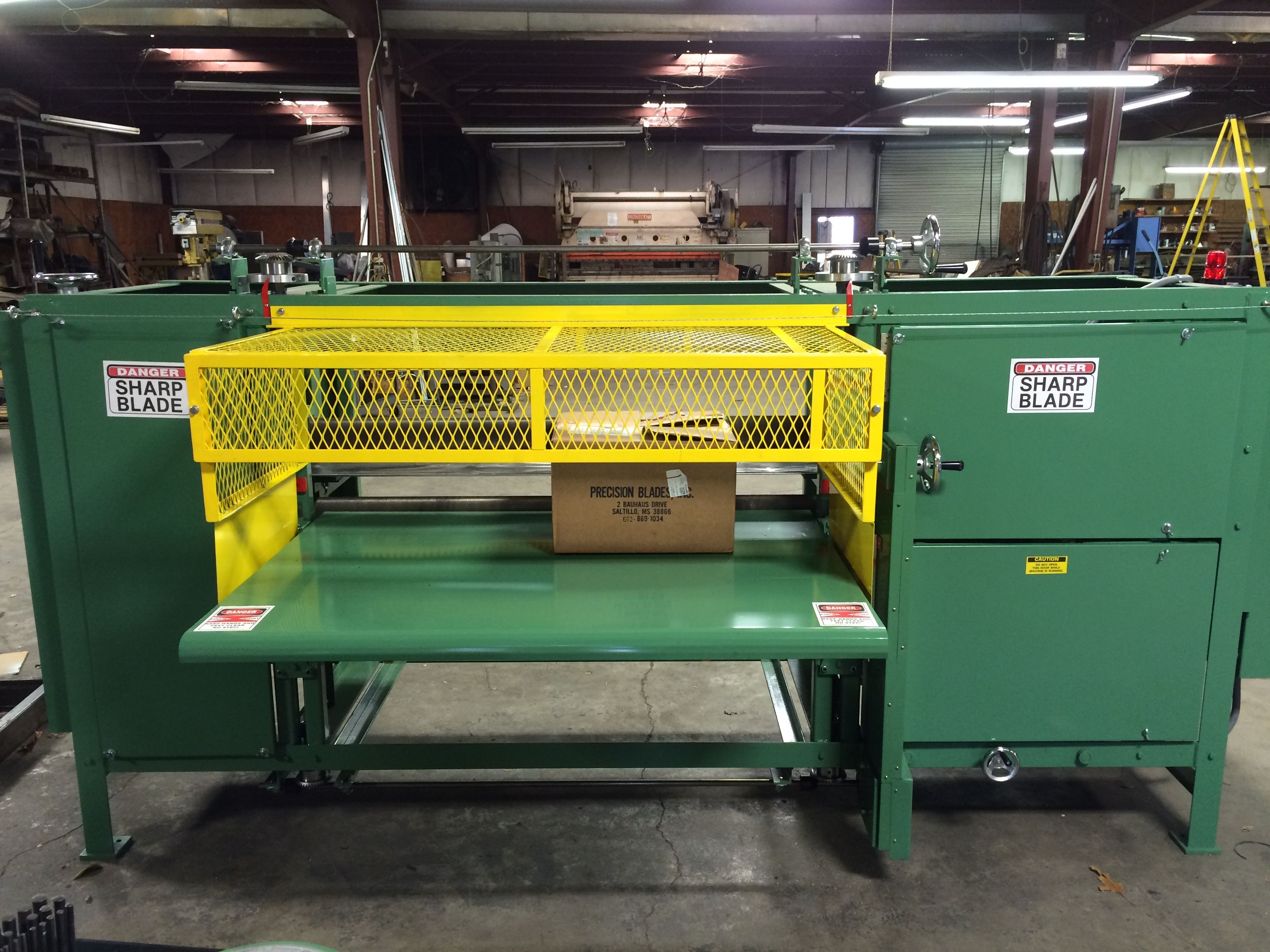

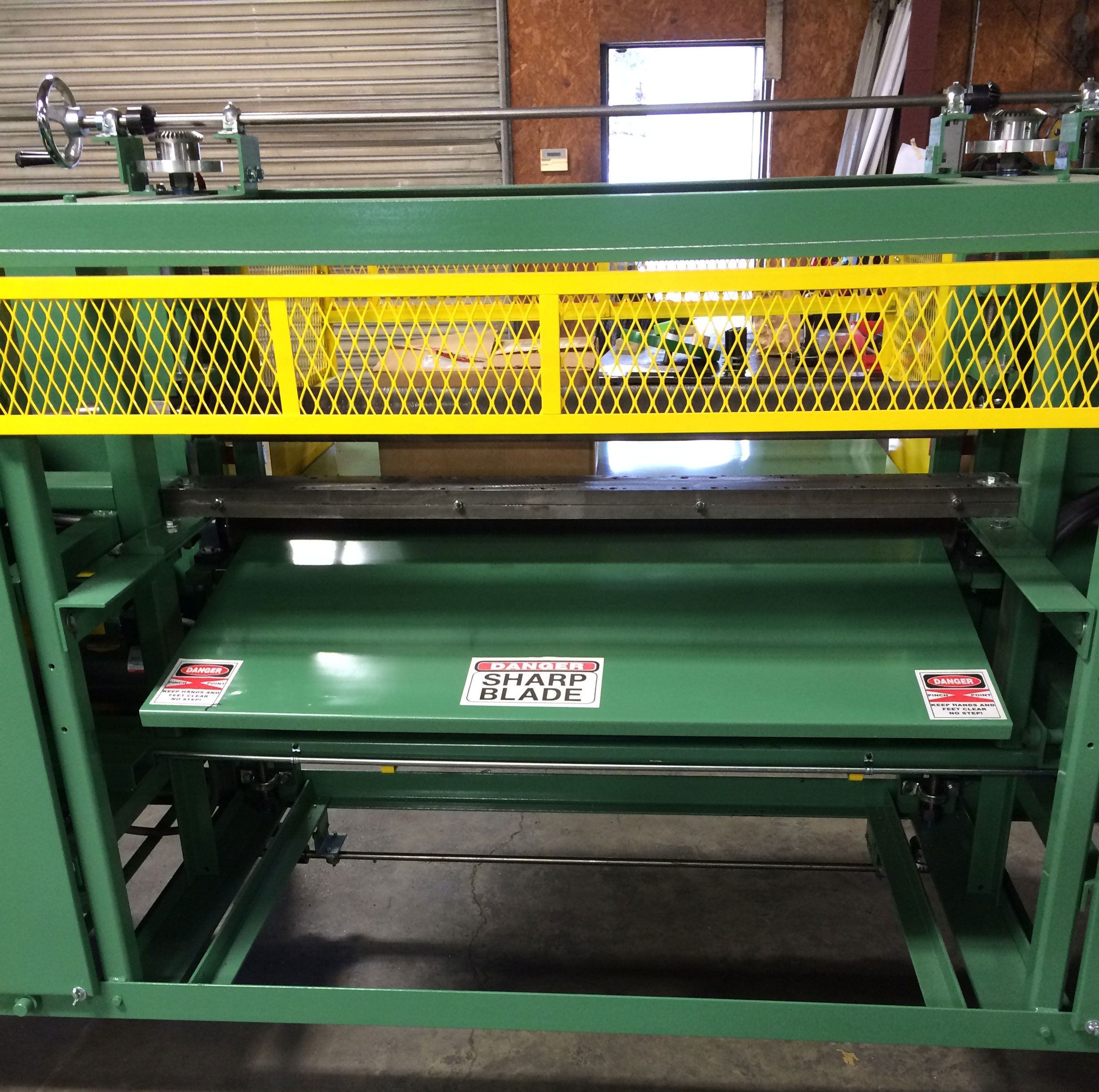

The upper roll of the roll splitter provides the gap between material and kife, thus controlling the thickness to be cut. Maximum rise over the knife is 4 inches. The lower can be adjusted to maximum of 8 inches below the knife. This roll has to be raised for amount the upper roll is set in order to advance the material into the knife. Since this roll carries the block of material, it is equipped with a table. The table consists of two parts: the front and the rear. Both table parts are in line with each other and raises or lowers as the bottom roll is adjusted. Both rolls are powered by manual handwheels. Scales indicate the position in relation to the knife blade.
The knife is sharpened by two grinders, powered by a 1/4HP motor, each. The grinders are equipped with horizontal and vertical adjusting means.
This machine is covered with removable steel panels, leaving only parts needed for operation exposed. All motors are totally enclosed, 3/230/460/60. Wiring and control enclosures NEMA 1. Starters magentic with O.R., coils line voltage. Safety switch interrupts control power if Knife breaks or there is insufficient knife tension.
Usable width of the machine is 52 inches. Length of cut is unlimited. Total thickness of material shall not exceed 12".
IMPORTANT: the cut sheets shall have the flexibility to bend for approximately 12 degrees to clear the knife guide.
Product Specifications
-
Power Requirements
230v 3 Phase
-
Warranty Information
Equipment manufactured by Pontotoc Machine Works, Inc. will be guaranteed against defective parts or workmanship for one year from date of delivery, except in cases of neglect or abuse.
-
Controls
Start/Stop push button controls
-
Dimensions
Usable width of the machine is 52 inches. Length of cut is unlimited. Total thickness of material shall not exceed 12".
